Adding Headlights to Carrera Ferrari ?

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • Adding Headlights to Carrera Ferrari ?

    Hi Folks,

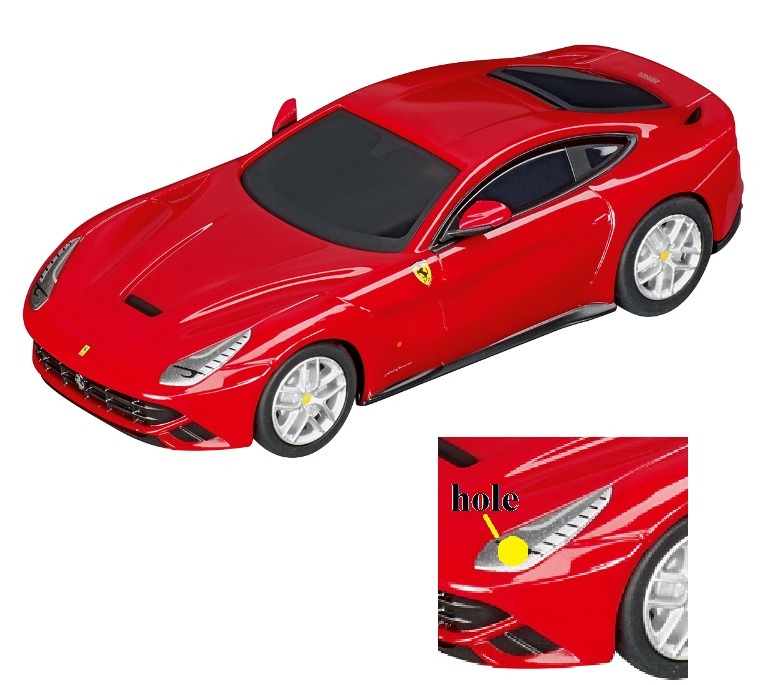

    I just got the Carrera Ferrari and want to add headlights. I just was thinking along the lines of an incandescent bulb (or LED) barely poking through a hole in the silver metallic painted area where the headlight lens would be:


    Any ideas?

    Thanks! Take care, Joe.

  • #2
    Hi Joe,
    letting a 1.8mm poke through a hole is the easy solution, but doesn´t look too nice. But it works.

    if you want to do it really nice i got the following tip:
    - put the nose of the car in modelling clay or plasticine to make a negative
    - file out the headlight in their correct shape
    - put the modelling clay back on
    - fill in clear resin and let dry
    - put LED behind the new clear cover headlight

    Peter

    Comment


    • #3
      Originally posted by Joe Paul View Post
      I just got the Carrera Ferrari and want to add headlights.
      Analog or digital?

      Note: with a D132 chip, I drill some holes and use a 3 mm LED (0,05A) with a 600 Ohms resistor;



      Like pfuetze said, this is not the best looking job, but for playing with kids, that's ok;



      Have a nice day.
      PL

      Comment


      • #4
        Originally posted by pfuetze View Post
        Hi Joe,
        letting a 1.8mm poke through a hole is the easy solution, but doesn´t look too nice. But it works.

        if you want to do it really nice i got the following tip:
        - put the nose of the car in modelling clay or plasticine to make a negative
        - file out the headlight in their correct shape
        - put the modelling clay back on
        - fill in clear resin and let dry
        - put LED behind the new clear cover headlight

        Peter
        Hi Pete,

        Thanks for the idea and tips. I have the Alumilite 2 part silicone putty (need to get the clear resin). I had thought about some curved plastic cut from blister packaging as a lens, but a mold would be better for a perfect match.

        Thanks!
        Take care, Joe

        Comment


        • #5
          Originally posted by pl9171 View Post
          Analog or digital?

          Note: with a D132 chip, I drill some holes and use a 3 mm LED (0,05A) with a 600 Ohms resistor;


          Have a nice day.
          PL
          Hi PL,

          Thanks for the info and ratings of the components! It is analog. I was thinking (perhaps) about a series of pin holes all over that lens area with an ultra bright LED behind it, but need to test how it would look.
          Thanks!
          Take care, Joe.
          Last edited by Joe Paul; 01-21-2017, 08:15 AM.

          Comment
